Contemporary data center design utilizes a diverse array of storage form factors optimized to meet specific capacity, performance and feature needs. MaiStorage’s D-Series enterprise SSDs are compatible with industry-standard and custom data center servers, enabling you to accommodate the increasing volume of data generated by contemporary applications and users with reduced power consumption.

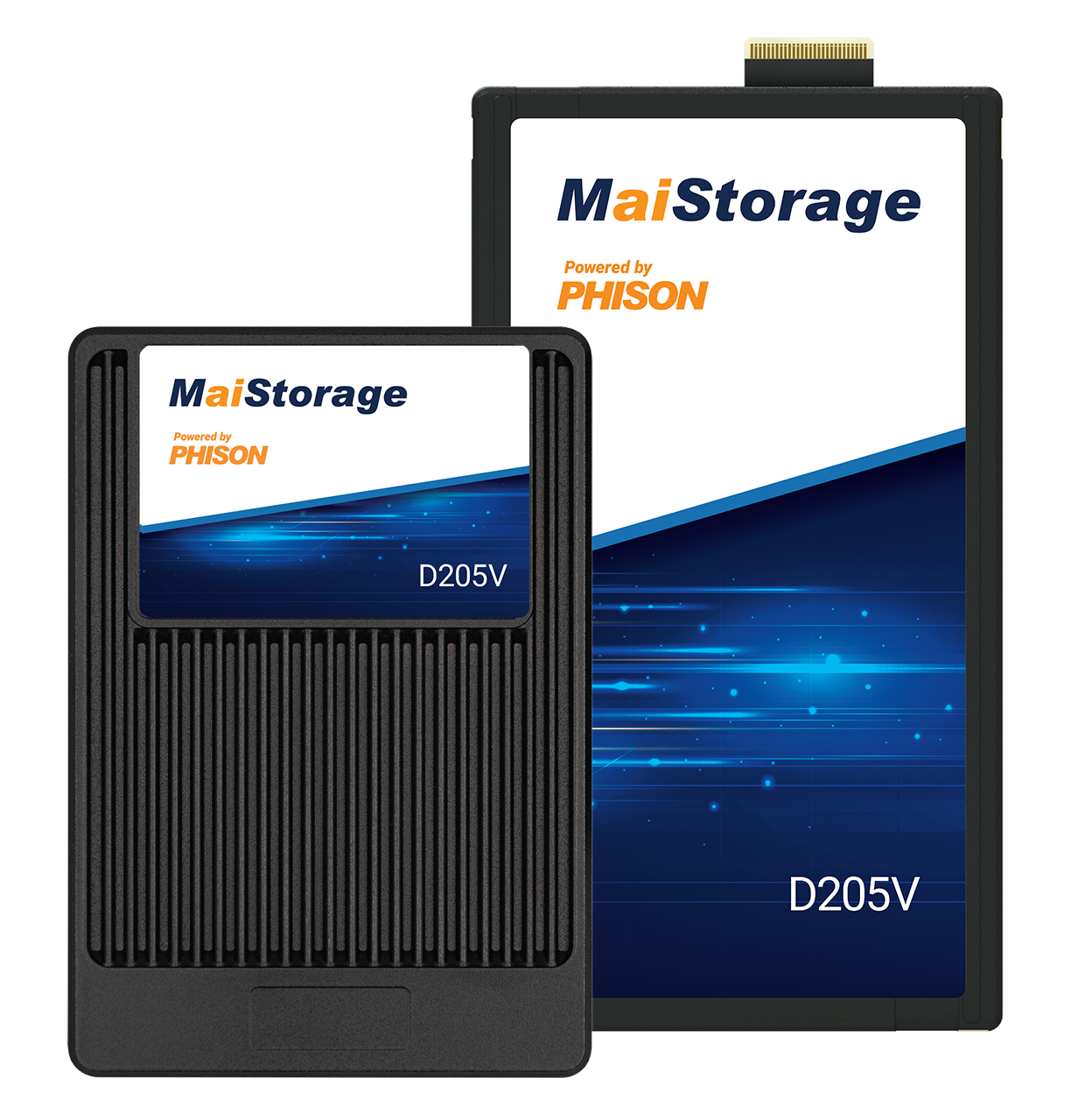

MaiStorage’s ultra-capacity D205V data center SSD achieves a 4-to-1 capacity advantage over disks, enabling larger datasets per server and reducing OPEX cost. Available in 122.88TB, the D205V read-intensive SSD combines the industry-leading X2 controller and the latest 2TB 3D QLC NAND technology to achieve unequaled 14,600 MB/s sequential read and 3,000K IOPS random read performance.
Discarding data is no longer an option in the artificial intelligence era. AI requires a combination of warm and cold data for machine learning to build new models to predict future events and trends that lead. Your path to overcoming the data deluge is clear with today’s leading capacity-per-watt SSD, the D205V.
U.2 or E3.L
PCIe Gen 5x4 Dual Port
122.88 TB
Active: 25W
Seq Read (up to)
14.6 GB/s
Seq Write (up to)
3.2 GB/s
Random Read (up to)
3,000 KIOPS (4K)
Random Write (up to)
35 KIOPS (16K)

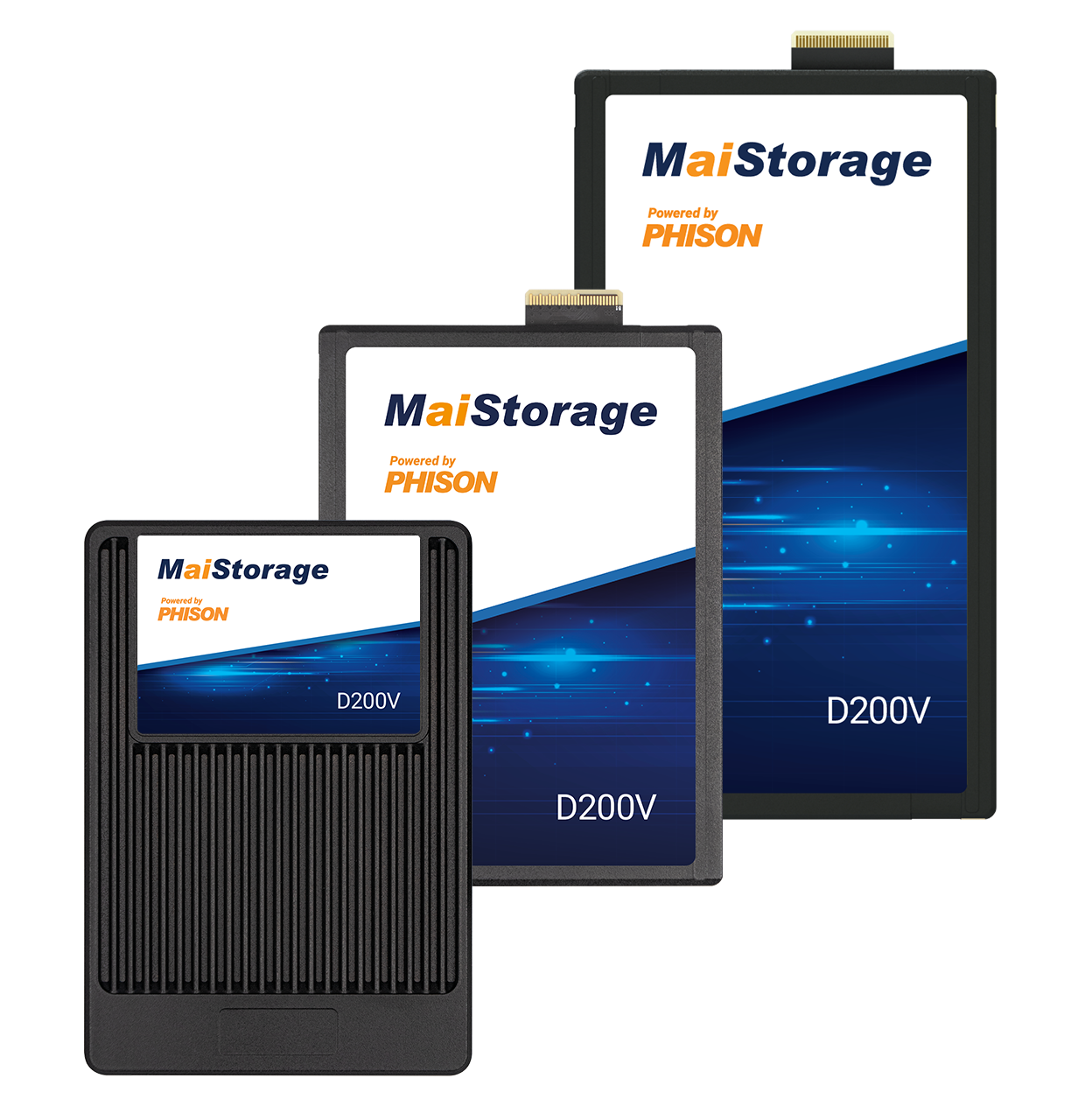

The newest large-capacity enterprise SSD, the D200V, is a read-intensive data center SSD that achieves an impressive 122TB per drive, making it the best alternative to traditional cold storage solutions (HDDs).
Just one D200V SSD can store the data that would require ten HDDs. Built with a PCIe Gen5 interface and paired with the industry’s latest 3D NAND technology, the D200V delivers performance up to 14,000 MB/s (sequential read) and 3,000K IOPS (random read).
In an era of exponential data growth, the D200V will help drive the trend of efficient data storage with improved space utilization and reduced power consumption.
U.2, E3.S, or E3.L
PCIe Gen 5x4 Dual Port
30.72 TB up to 122.88 TB
Active: 35W
Seq Read (up to)
14 GB/s (est.)
Seq Write (up to)
2.1 GB/s (est.)
Random Read (up to)
3,000 KIOPS (4K)(est.)
Random Write (up to)
15.6 KIOPS (16K)(est.)

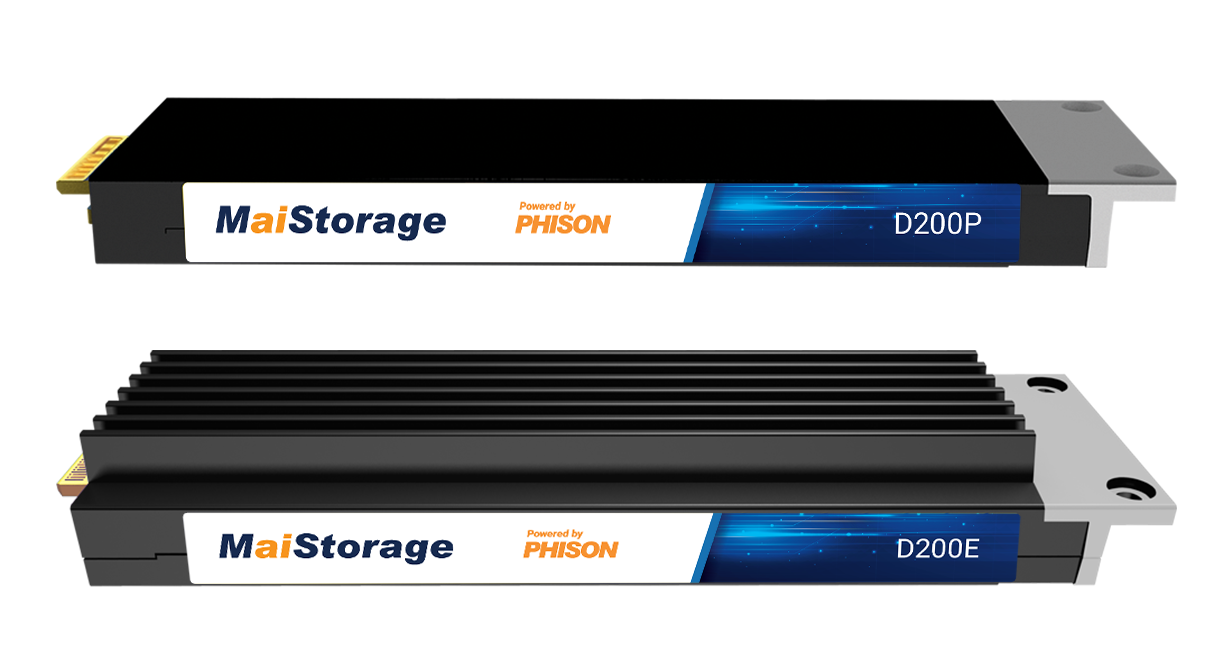

The D200 series meets the evolving demands of data center, cloud, and edge infrastructure. Built on PCIe Gen5, the D200 delivers optimized performance, power efficiency, and enterprise-grade reliability. Available up to 7.68TB, the D200 series offers E1.S 9.5mm and 15mm form factors. It also meets Open Compute Project (OCP) Datacenter NVMe® SSD Specification 2.0, ensuring seamless next-gen compatibility.
E1.S
PCIe Gen 5.0 x4
Up to 7.68 TB
Active: 23W
Idle: 4.9W
Seq Read (up to)
14 GB/s
Seq Write (up to)
8.5 GB/s
Random Read (up to)
3,300 KIOPS (4K)
Random Write (up to)
880 KIOPS (4K)

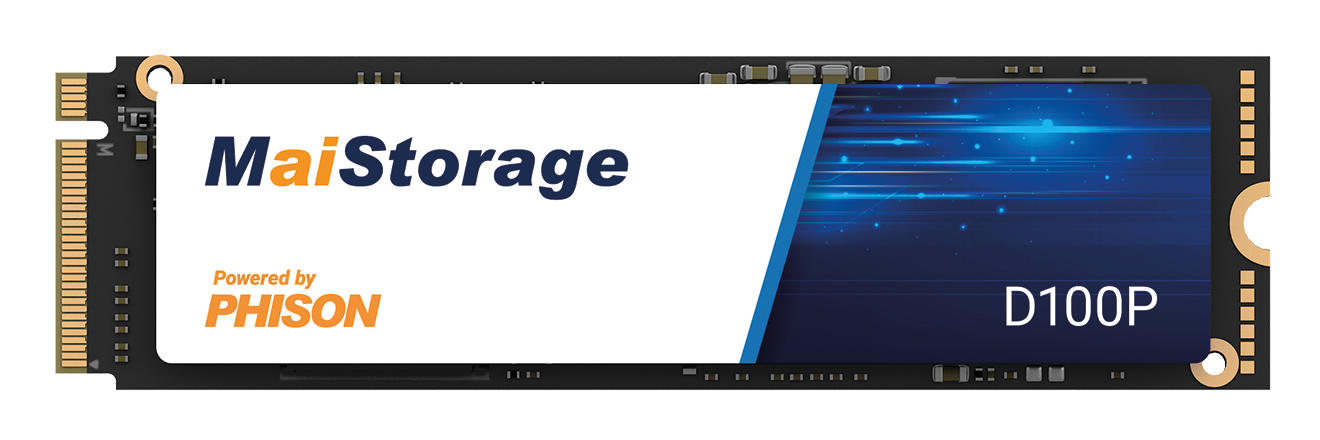

The D100 enterprise SSD is optimized for high consistency with excellent Quality of Service (QoS) over intensive read and write command executions. This series is highly customizable to meet partners’ individual application and brand requirements.
PCIe Gen4x4 Single Port
M.2 2280, 22110, E1.S
480 GB up to 3.84 TB
Active: 11.5W (M.2 2280, 22110) | 13.5W (E1.S)
Idle: 3.5W (M.2 2280, 22110) | 4.2W (E1.S)
Seq Read (up to)
6.0 GB/s (M.2 2280, 22110)
6.8 GB/s (E1.S)
Seq Write (up to)
1.8 GB/s (M.2 2280, 22110)
2.0 GB/s (E1.S)
Random Read (up to)
800 KIOPs (M.2 2280, 22110)
900 KIOPs (E1.S)
Random Write (up to)
60 KIOPs (M.2 2280, 22110)
70 KIOPs (E1.S)
